Professional Chainsaws

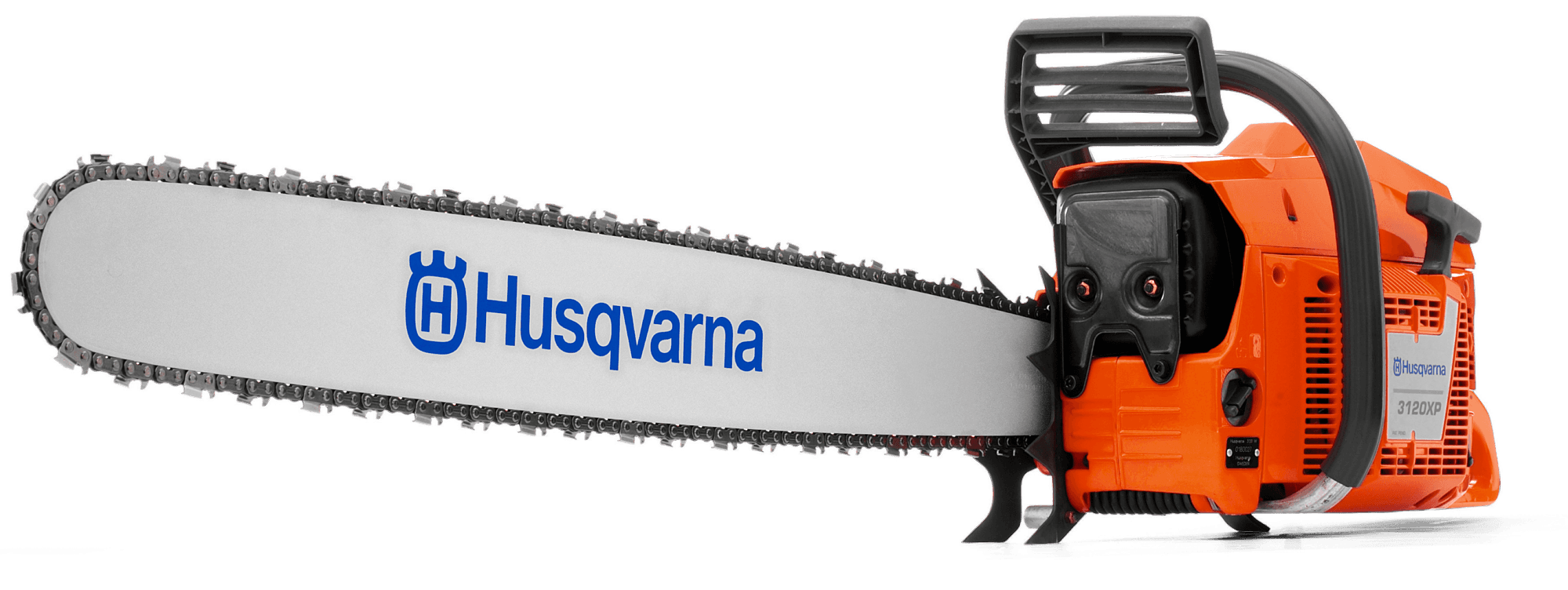

3120 XP®
$3,679.00Rec. retail price incl. GST SKU: 966825301- Output shaft power6.2 kW
- Cylinder displacement118.8 cm³
Product description
The 3120 XP is one of the world’s most powerful chainsaws. Built for professionals who fell the largest dimensions of trees and extremely hard types of wood. The 3120 XP® commercial chainsaw features good ergonomics and excellent power-to-weight ratio. Easy to start thanks to Smart Start®. Equipped with a chain brake, chain catcher and right hand guard for maximum safety, the slim, lightweight body with a high centre of gravity makes it easy to carry and use.
Product Information
Features (7)
Adjustable Oil Pump
Customize and control oil flow to meet any need
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Magnesium crankcase
Magnesium crankcase designed for professional use
Three-Piece Crankshaft
Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs
LowVib® Technology
Effective LowVib® dampeners absorb vibration, sparing the user’s arms and hands.
Felling marks
Felling marks for correct felling direction
Inertia-Activated Chain Brake
Effective inertia-activated chain brake reduces the likelihood of injury due to kickback.
Specifications | Art No: 966825301 |
|---|---|
| Output shaft power | 6.2 kW |
| Weight (excl. cutting equipment) | 10.4 kg |
| Chain speed at max power | 20.1 m/s |
| Cylinder displacement | 118.8 cm³ |
| Fuel consumption | 3.1 kg/h |
| Fuel tank volume | 1.25 l |
| Sound pressure level at operators ear | 102 dB(A) |
| Bar length | 60 cm |
| Clutch engagement speed (±120) | 3700 rpm |
| Electrode gap | 0.5 mm |
| Equivalent vibration level (ahv, eq) front handle | 6.7 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 7.8 m/s² |
| Exhaust emissions (CO average) EU | 497.55 g/kWh |
| Exhaust emissions (CO average) EPA | 446.38 g/kWh |
| Exhaust emissions (HC average) EU | 143.07 g/kWh |
| Exhaust emissions (NOx average) EU | 1.03 g/kWh |
| Exhaust emissions (NOx average) EPA | 0.64 g/kWh |
| Fuel consumption | 570 g/kWh |
| Idling speed | 2500 rpm |
| Maximum power speed | 9000 rpm |
| Oil tank volume | 0.7 l |
| Product size height | 34.6 cm |
| Product size length | 47 cm |
| Product size width | 28.5 cm |
| Recommended bar length, max | 42 in |
| Recommended bar length, max | 105 cm |
| Recommended bar length, min | 24 in |
| Recommended bar length, min | 60 cm |
| Sound power level, guaranteed (LWA) | 116 dB(A) |
| Sound power level, measured | 115 dB(A) |
| Torque, max. | 7.7 Nm |
| Torque, max. at rpm | 6000 rpm |
| Vibrations left/front handle | 7.7 m/s² |
| Vibrations right/rear handle | 10.6 m/s² |
